All products for cleaning systems

Foam and disinfection units

Foam cleaning and disinfection units are ideal for cleaning and disinfecting with foam. The foam cleaning and disinfection unit is used in industrial environments where cleaning with foam and/or disinfection is necessary for optimal cleaning. The units are often used in mobile and manual cleaning systems. Read more in the brochure or in the selection plan.

Temperature control
Solid construction
Start/stop system
Even dosing

Cleaning systems

Economical with water

Need advice or do you have a question?

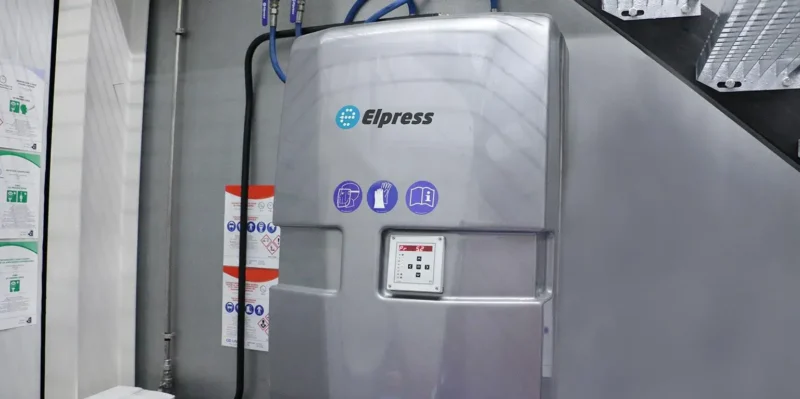

How a foam cleaning and disinfection unit works

After switching on the unit, the mains water is automatically pressurised. The start-stop system enables the unit to switch on or enter standby automatically when one of the supply points is opened or closed.

The foam cleaning and disinfection system is equipped with a break tank that provides approved backflow protection, which prevents contaminated water from flowing back into the pipes. A dirt trap in the supply line filters the water and prevents unnecessary disruptions.

The proportional dosing system ensures that the chemical is dosed at a constant percentage. The pump recalculates continuously to ensure that the correct amount of chemical is added, depending on the measured water flow. This results in more efficient cleaning and safer use of chemicals.

All units are available with electrically controlled dosing pumps.

Need advice or do you have a question?

CFD-Q 64E Article nr. 83601020

Foam dosing	3 %
Capacity disinfection pump per minute	0.5 %
Temperature	70 °C
Working pressure	6 bar
Power	1 kW

CF-Q 6E Article nr. 83604017

Foam dosing	2 %
Temperature	70 °C
Working pressure	6 bar
Power	2.7 kW
Total power	2.7 kW

eCoud

Complete control of your hygiene systems with cloud monitoring

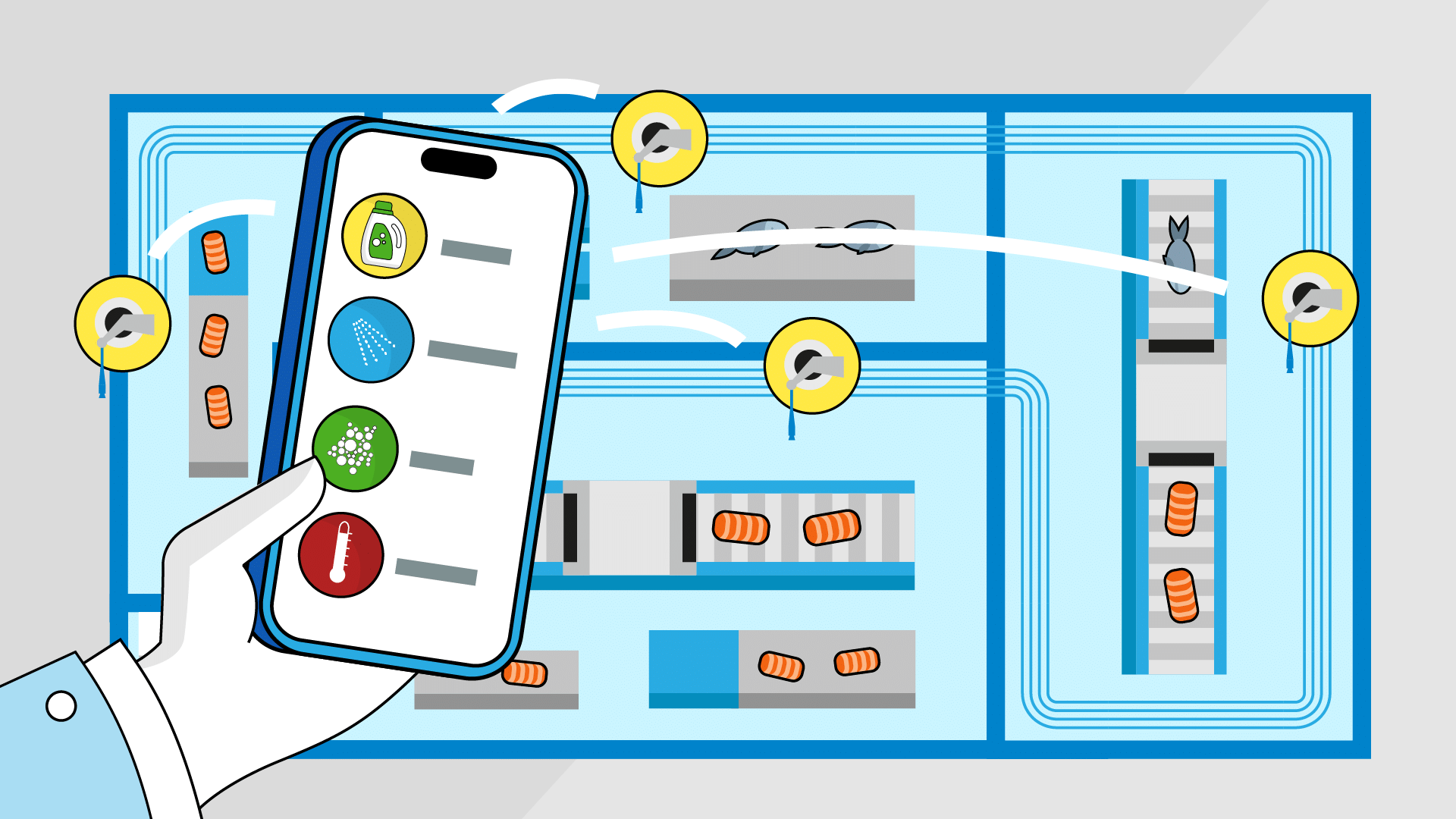

eCloud is Elpress’ cloud-based monitoring platform. The platform links your hygiene sluices, cleaning systems and washing systems to an online dashboard so that you always have real-time data and automatic reports at your disposal. You receive instant push notifications in case of malfunctions or abnormalities and you can easily use historical data for audits (HACCP, BRC, IFS).

Easy connection
Monitor cleaning behaviour such as water and chemical consumption
Secure remote access (certified and AVG-proof)
Adjustable settings

Frequency-controlled Grundfos IE5 pump

The unit is equipped with a frequency-controlled Grundfos pump. Depending on the number of simultaneous users, the pump regulates the pressure up to a maximum of 8 bar. The keyword here is efficiency, as the pump only uses the energy needed.
