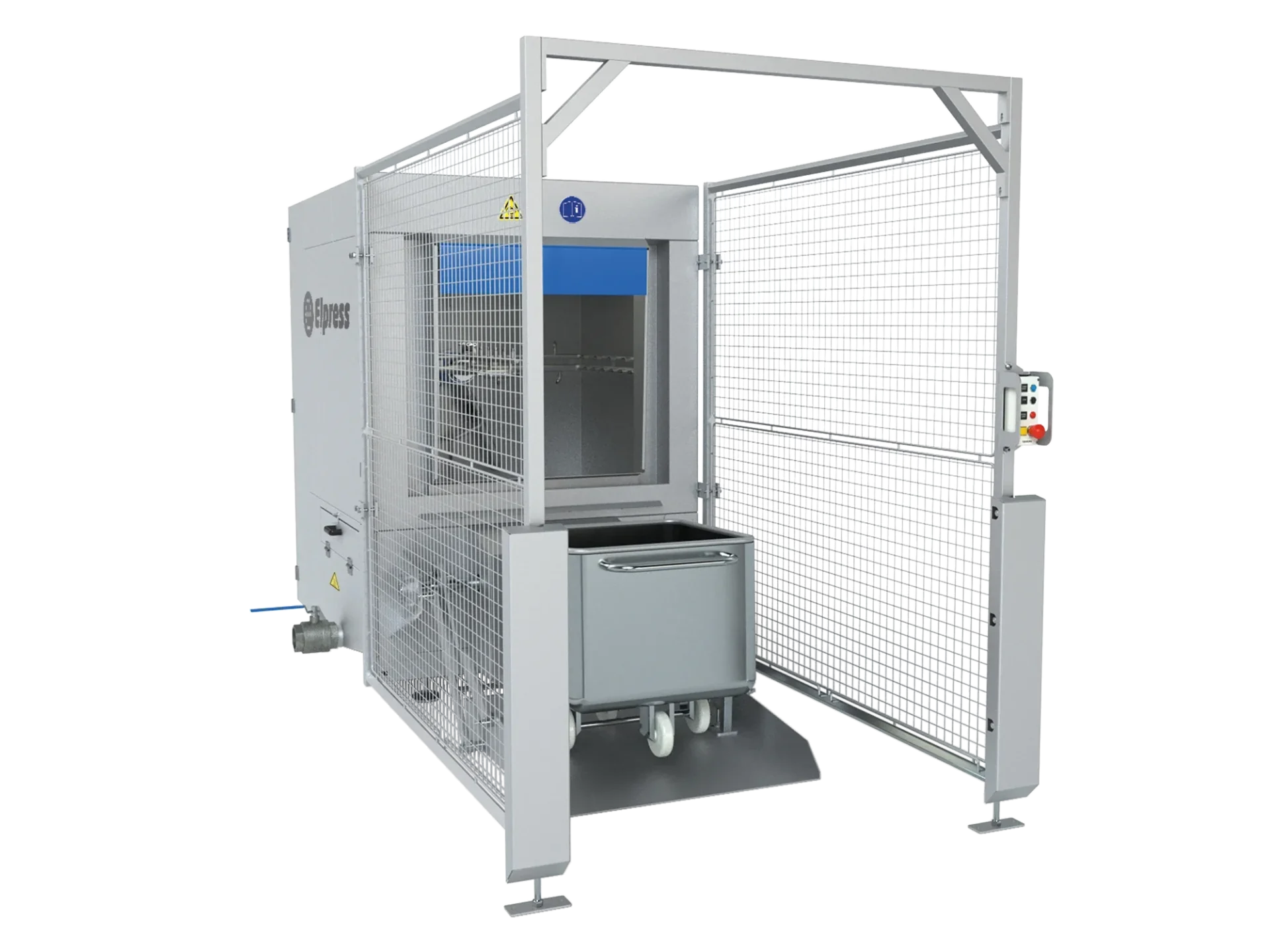

Bin washers

A bin washer is an industrial washing system designed for the thorough and efficient cleaning of standard trolleys, commonly used in the food processing industry, such as bakeries and slaughterhouses. A standard trolley washer is essential for maintaining high hygiene standards, as it helps remove food residues, grease, and other stubborn dirt.

Energy efficient
Selectable wash program
Simple operation
Removable filter drawer
Rinse program with clean water

Adjustable feet

Adjustable settings

Connectable to a centralised chemical supply

Economical with water

Industrial washing systems

Made from stainless steel

Need advice or do you have a question?

Operation of a bin washer

The entire system is constructed of solid plates and profiles (stainless steel 304) and is placed on adjustable legs. The wash cabinet is easy and quick to clean. The spacious door allows easy access to the inside for internal cleaning. The water tank has a sloping bottom. This ensures that the wash water drains quickly when the water tank is emptied.

Dimensions of the standard carts according to DIN9797:

200L – 790 x 675 x 700 mm (lxbxh)
300L – 790 x 675 x 950 mm (lxbxh)

The spray arms are equipped with a large number of stainless steel nozzles. At the rear of the cabinet, the pump, spray arm drive and the optional metering pump are housed in an enclosed space. Through removable hatches, this space is easily accessible.

ENW Article nr. 83103005

Main wash zone – Pump	7.5 kW
After rinse zone – Water consumption	5 liter
Main wash zone – Capacity	48 m³/h
Depth incl. safety/fences	3805 m
Width	1530 mm

ENW-5000 | 200 Liter Article nr. 83103250

Main wash zone – Pump	7.5 kW
After rinse zone – Water consumption	7 liter
Main wash zone – Capacity	48 m³/h
Electrical connection	400v – 50Hz – 3Ph
Main wash zone – Nozzles	Synthetic click

ENW-5000 | 300 Liter Article nr. 83103255

Main wash zone – Pump	7.5 kW
After rinse zone – Water consumption	7 liter
Main wash zone – Capacity	48 m³/h
Electrical connection	400v – 50Hz – 3Ph
Main wash zone – Nozzles	Synthetic click

Energy-efficient cleaning of bin washers

At a time when sustainability is becoming increasingly important, our bin washer offers an energy-efficient solution for cleaning bin carts. By integrating advanced technologies such as optimized heating elements and water circulation systems, our washer consumes significantly less energy compared to traditional systems. This is further enhanced by a smart wash cycle control that saves energy by precisely adjusting the temperature and duration of each wash stage based on the degree of contamination.

Need advice or do you have a question?

Food processing

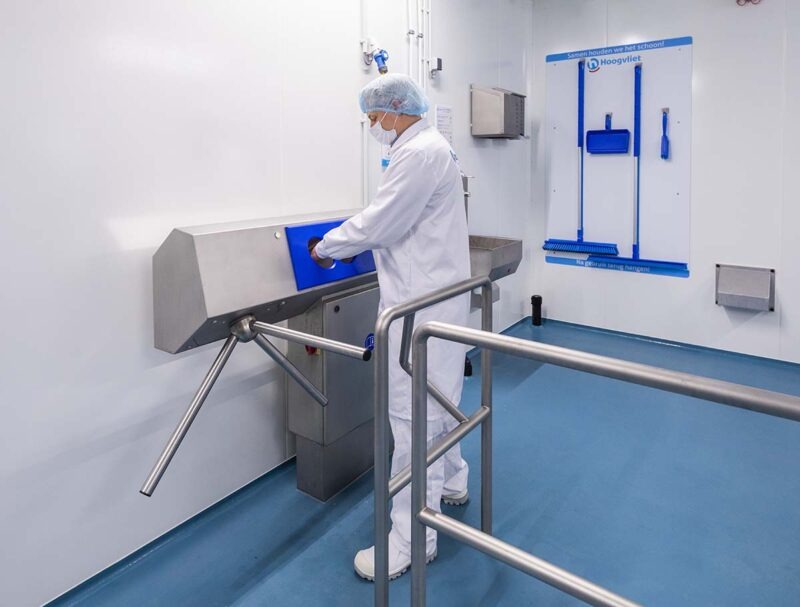

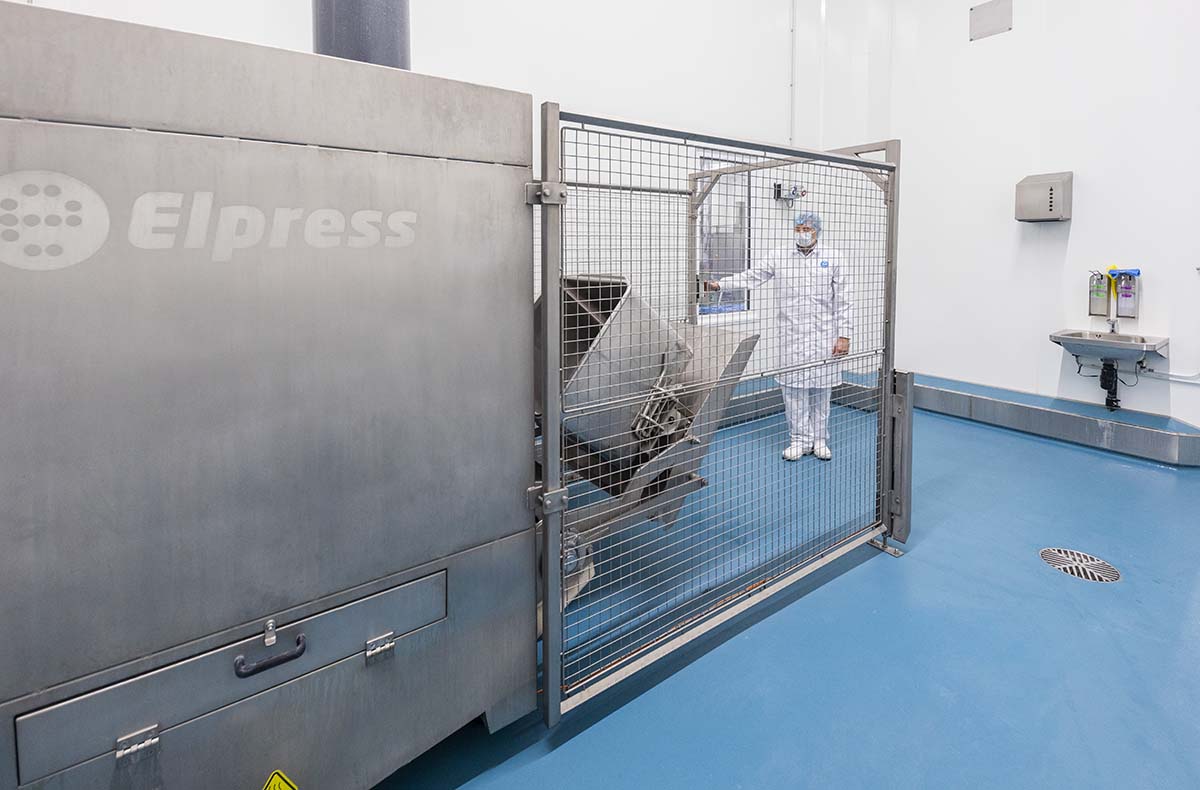

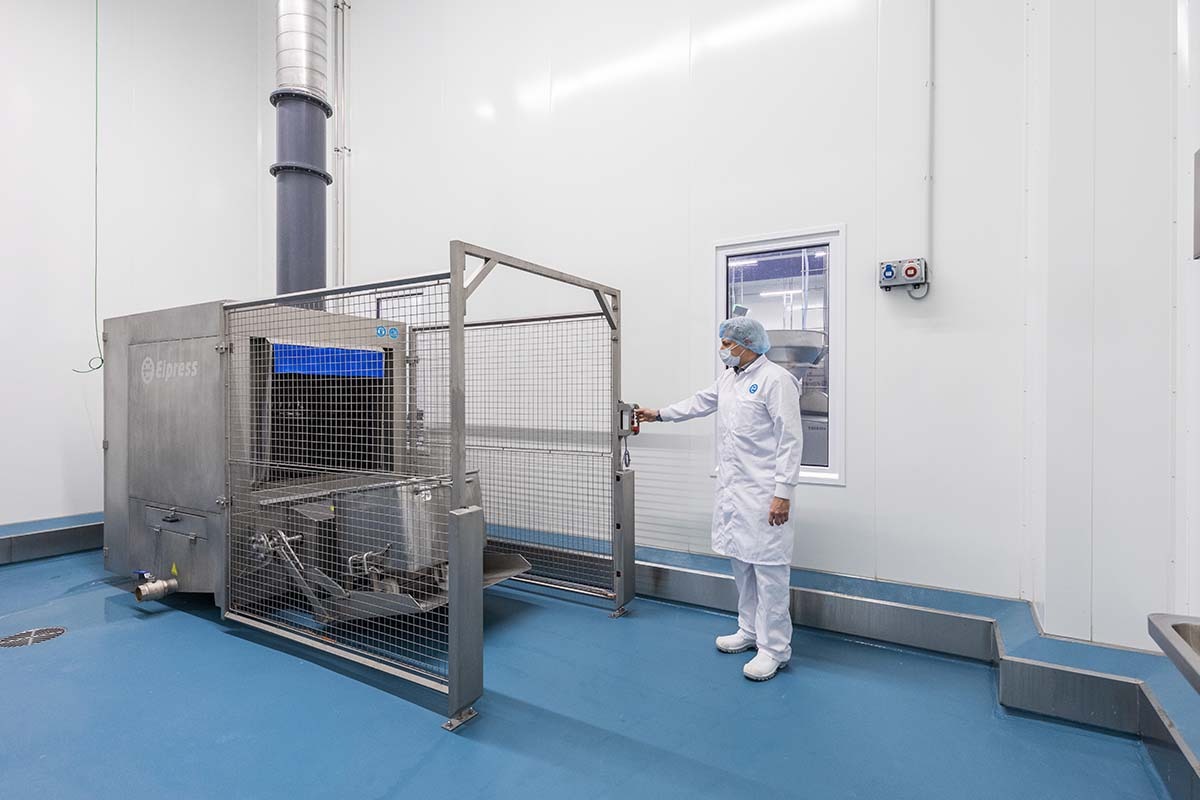

Hoogvliet

Meat industry

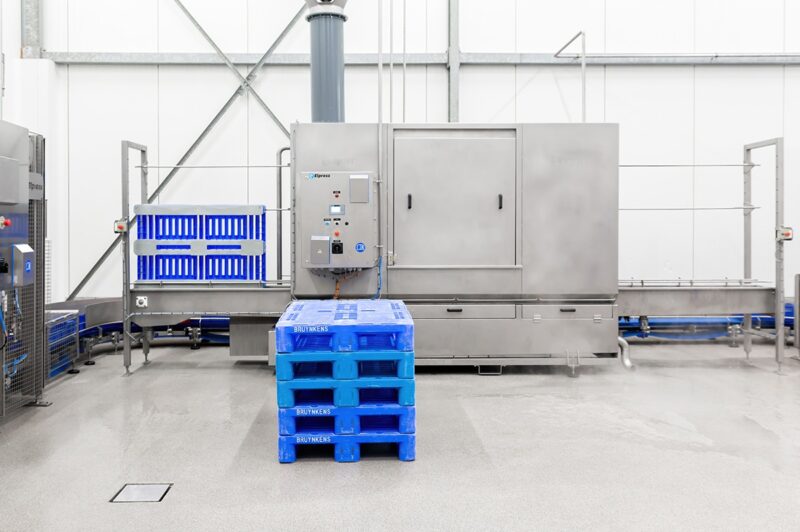

Bruynkens Vleeswaren

Meat industry

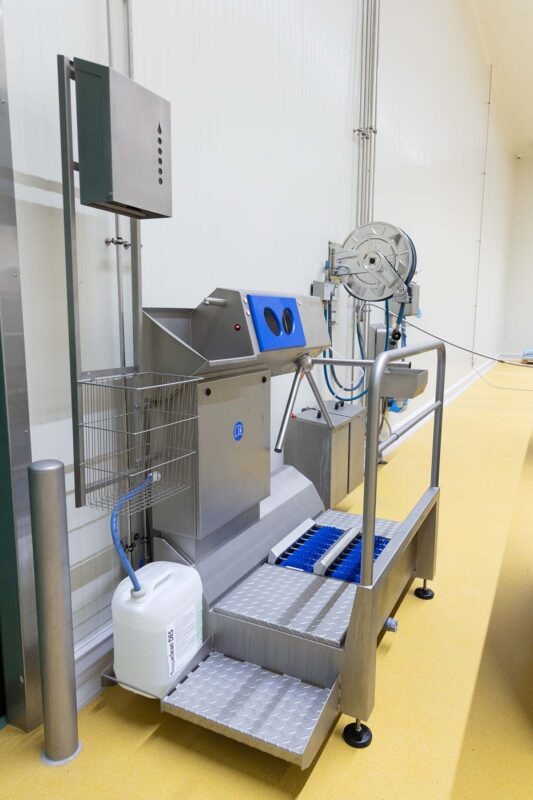

Teker

Selectable washing program in the bin washer

The Elpress bin washer ensures a complete and effective washing process of your bin trolleys. Depending on the degree of soiling, the washing program can be set up to a maximum of 30 minutes. The process in the bin washer consists of the main wash program and a rinse program with clean water that rinses the bin trolley and removes detergent. At the end of the process, the bin trolleys are returned outside the machine.
