All washing systems EPW

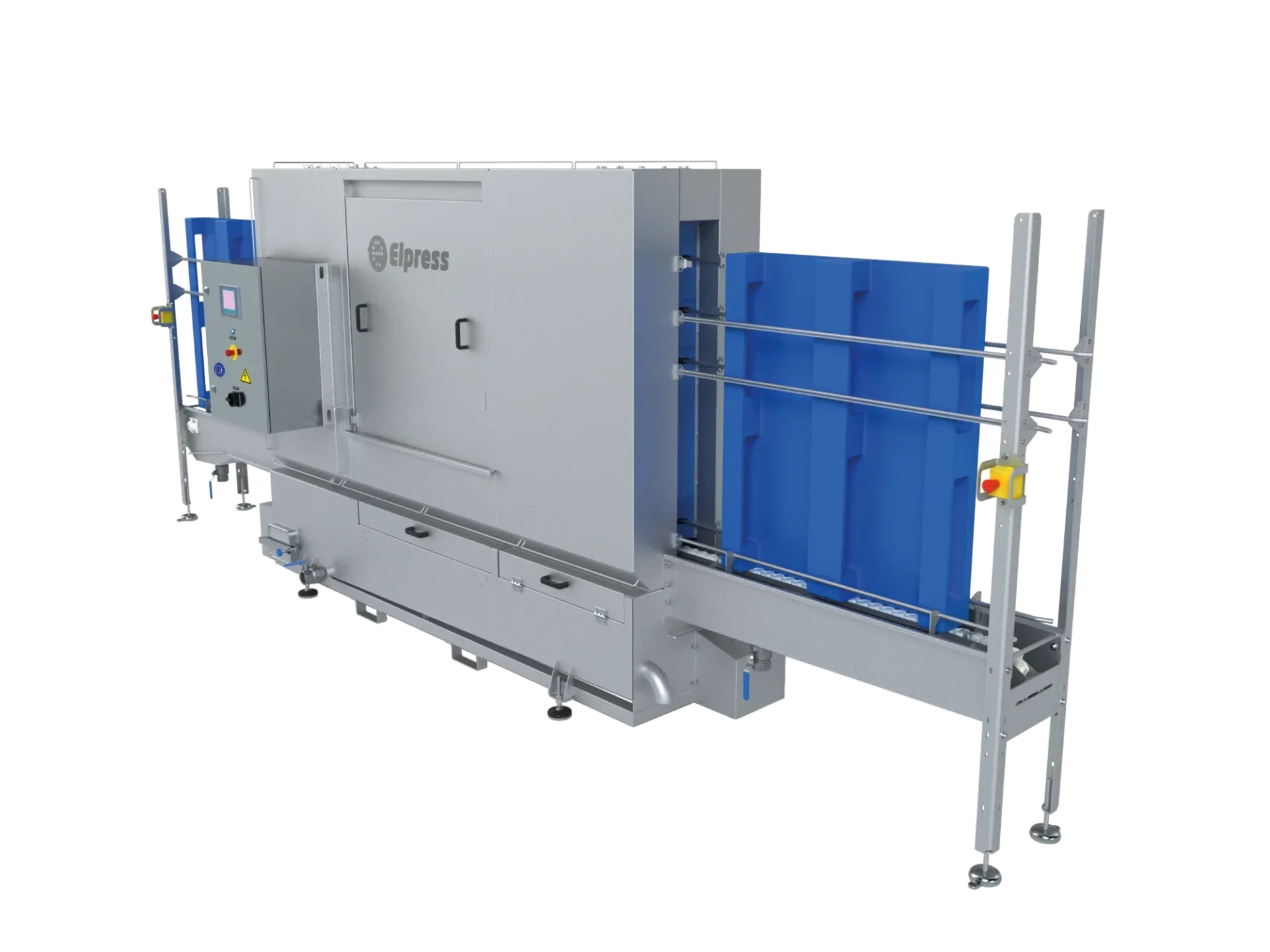

Pallet washers

A pallet washer is an advanced cleaning system designed specifically for thoroughly washing pallets in various industrial environments. This industrial washing system provides an efficient solution for removing dirt, grease, and other contaminants from pallets, making them clean and hygienic for reuse. With our pallet washer machine, you are assured of powerful and efficient cleaning that meets the highest hygiene standards.

Energy-efficient
Rinse zone with clean water
Manufactured from stainless steel (SS 304)
Available with optional extensions

Adjustable feet

Adjustable settings

Connectable to a centralised chemical supply

Economical with water

Industrial washing systems

Made from stainless steel

Need advice or do you have a question?

Operation of a pallet washer

The entire system is constructed of solid plates and profiles (stainless steel 304) and is placed on adjustable legs. The washing tunnel is accessible through removable hatches. An ample number of nozzles ensures optimal cleaning of the pallets. The side guides ensure proper positioning of the pallet during cleaning.

In the main wash zone, the pallets are cleaned and the contamination removed from the pallets. The nozzles are configured for maximum cleaning results. They are supplied with water by a powerful, energy-efficient pump.

In the rinsing zone, the pallets are rinsed with clean water. The water supply is connected to the water line and equipped with a rinse control. The rinsing zone is equipped with a large number of stainless steel nozzles.

Pallet dimensions:

1200 x 800 x 120/160 mm (lxwxh)
1200 x 1000 x 120/160 mm (lxwxh)

EPW-45 Article nr. 83105000

Drivetrain	0.18 kW
Main wash zone – Pump	5.5 kW
After rinse zone – Water consumption	6 liter
Main wash zone – Capacity	48 m³/h
Main wash zone – Length	2900 m

EPW-90 Article nr. 83105050

Drivetrain	0.18 kW
Main wash zone – Pump	5.5 kW
After rinse zone – Water consumption	6 liter
Main wash zone – Capacity	48 m³/h
Main wash zone – Length	2900 m

Sustainable and energy efficient pallet washing

Our pallet washer is an advanced cleaning system designed for thoroughly washing pallets in an energy-efficient and sustainable manner. The entire system is constructed from solid plates and profiles made of high-quality stainless steel (SS 304), which not only ensures a long service life, but also contributes to the sustainability of the washer.

The cleaning process itself is also optimized for energy efficiency. The powerful water jets are delivered by an energy-efficient pump, minimizing energy consumption without sacrificing cleaning performance. In addition, the rinse zone uses clean water connected to the water supply, which optimizes water consumption and prevents waste.

Meat industry

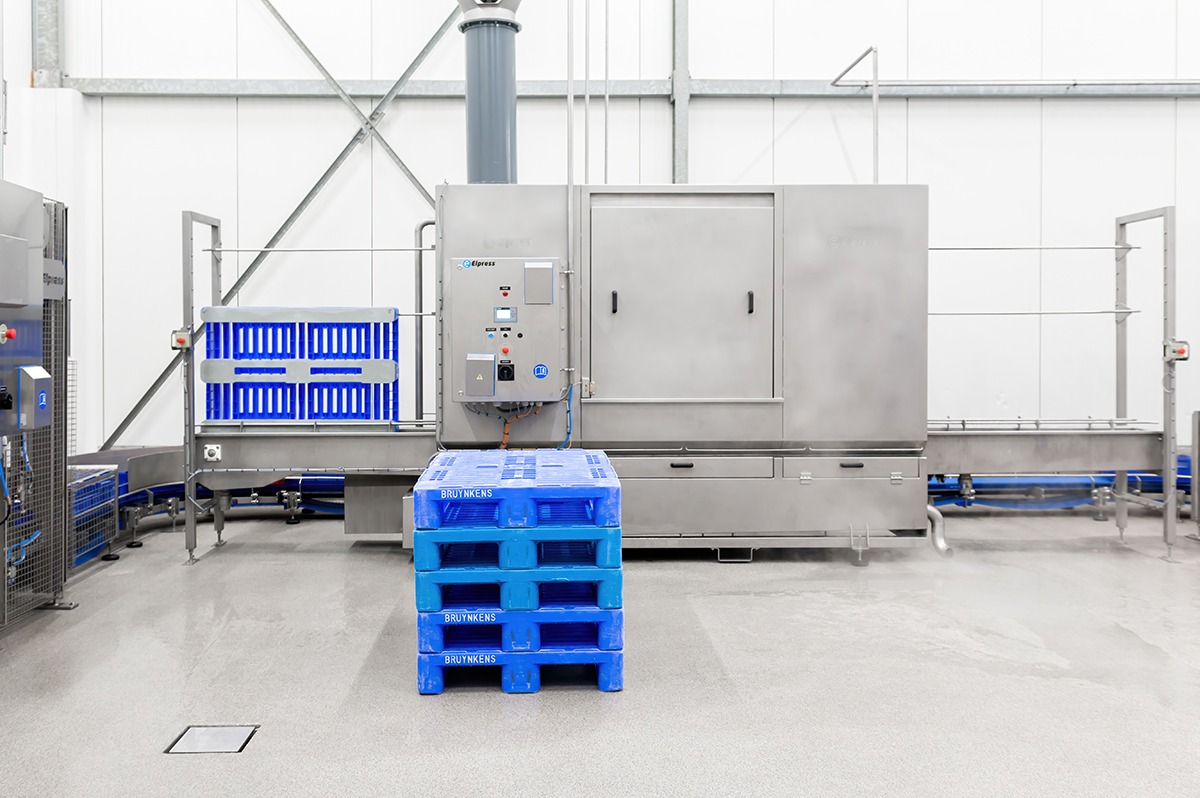

Bruynkens Vleeswaren

Powerful pallet washing with our pallet washer

Our pallet washer offers unmatched cleaning power that ensures your pallets are thoroughly cleaned and ready for reuse in your operational processes. The cleaning process begins in the main wash zone, where powerful nozzles optimize pallet cleaning and efficiently remove dirt. The nozzles are configured for maximum cleaning results and are supplied with water by a powerful, yet energy-efficient pump.

The main wash is followed by the rinsing zone, where the pallets are rinsed with clean water. The water supply is connected to the water mains and equipped with a rinse control to optimize water consumption. A large number of stainless steel nozzles are also present here, ensuring thorough rinsing without wasting water and energy.
