All products for cleaning systems

Satellites

Elpress satellites are specially designed to support hygiene-sensitive sectors in the safe and easy cleaning of rooms and machines. There are three options available: satellites with a centralised chemical supply, satellites with a decentralised chemical supply and mobile satellites. Each station offers the possibility to choose between rinsing, foaming and disinfecting. Pneumatic or manual chemical supply enables industrial spaces to be cleaned accurately and in measured doses. Download the whitepaper for more information.

Rinsing, foaming and disinfecting
Easy self-dosing
Efficient and adaptable cleaning process
Low maintenance
Hygienic housing

Cleaning systems

Made from stainless steel

Need advice or do you have a question?

Decentralised chemical supply

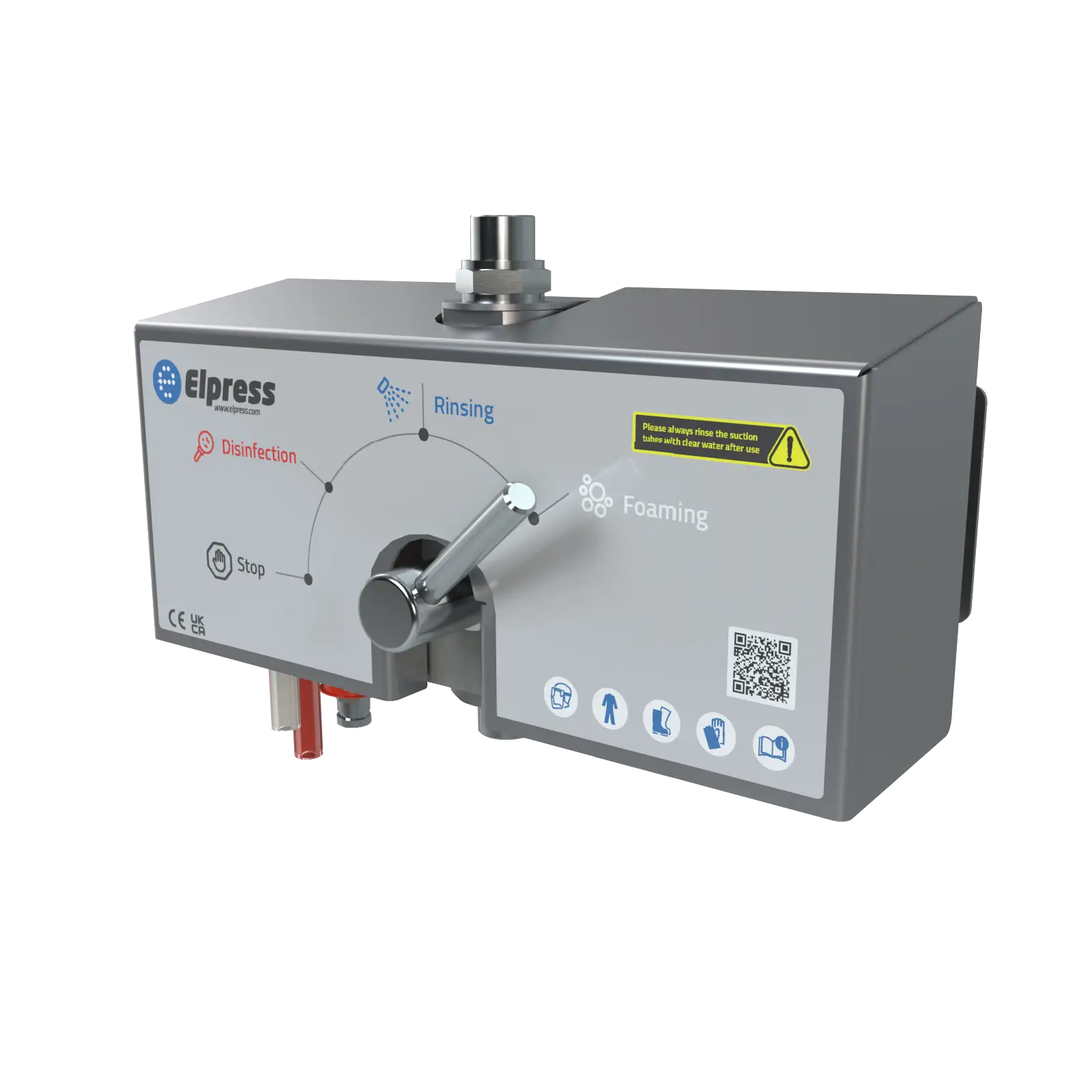

The Blocksat is a decentralised satellite that makes rinsing, foaming or disinfecting business premises easy. The user-friendly selector lever makes it very easy to choose between these functions and set the desired dosage. This makes the system very flexible and keeps the user in control.

The system can work effectively at pressure values ranging from 15 to 40 bar. This broad pressure range makes the Blocksat 2.0 suitable for various applications and environments, where it continues to deliver results at both lower and higher pressure levels.

When the desired ball valve is opened or the desired switch is chosen, the cleaning activities can start. A pressure regulator on the air line makes it possible to regulate the amount of air and influence the composition of the foam. The satellites have a hygienic design and should be mounted on the wall.

In-house service
Operates from 15 to 40 bar
Reduced load on O-rings
Saves costs, especially in terms of life cycles and maintenance

Manual operation

Centralised chemical supply

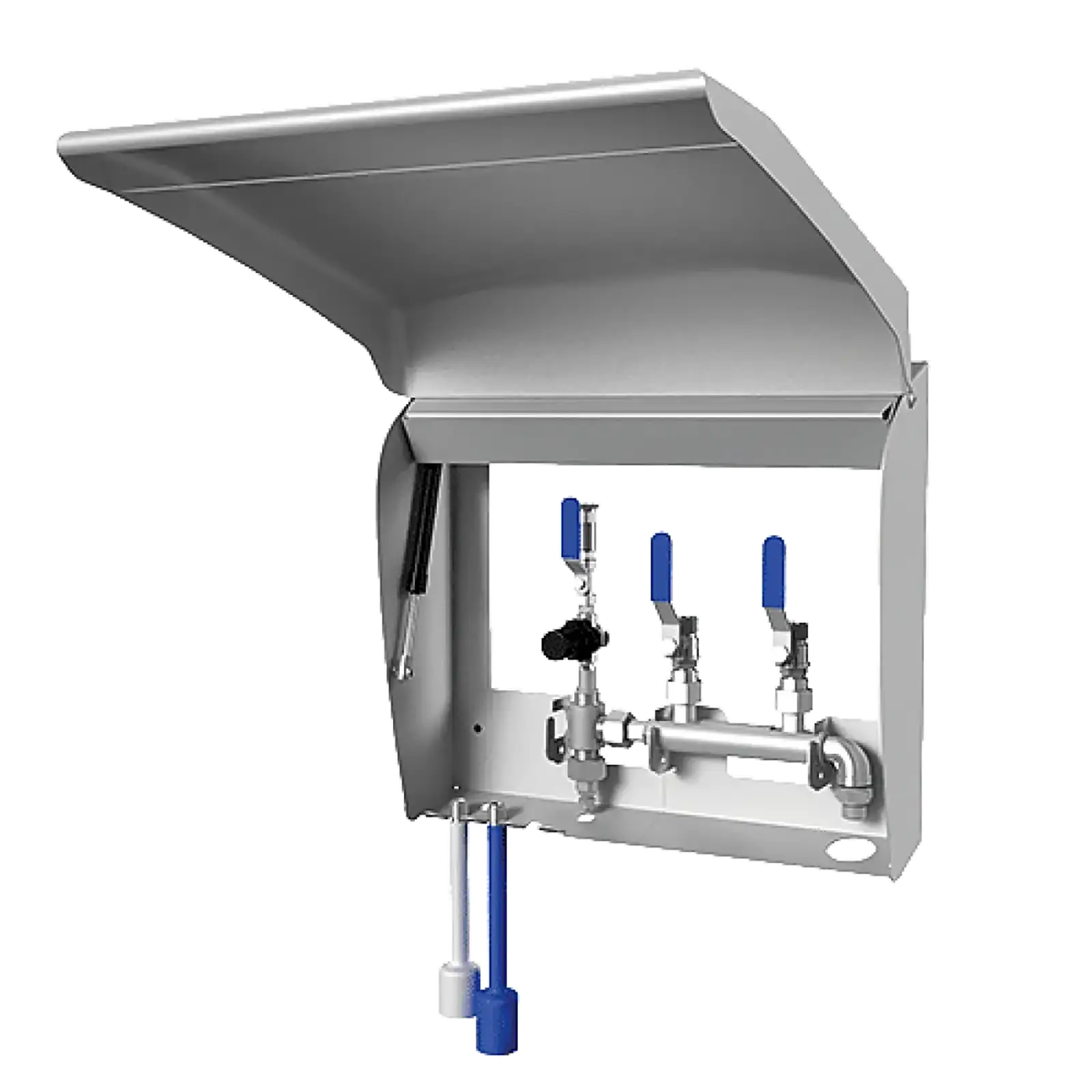

This system distributes chemicals centrally to various locations or devices by means of manual operation. With this system, users manually regulate and dose the chemicals from a central source to the desired points of use.

After opening the relevant ball valve, the cleaning activities can begin: rinsing, foaming or disinfecting. A pressure regulator on the air line makes it possible to regulate the amount of air and influence the composition of the foam. The satellite itself is located on the wall and is supplied by a centralised chemical supply.

Hygienic housing
Adjustable foam composition
No need to carry around separate jerrycans
Very simple operation

Pneumatic operation

Centralised chemical supply

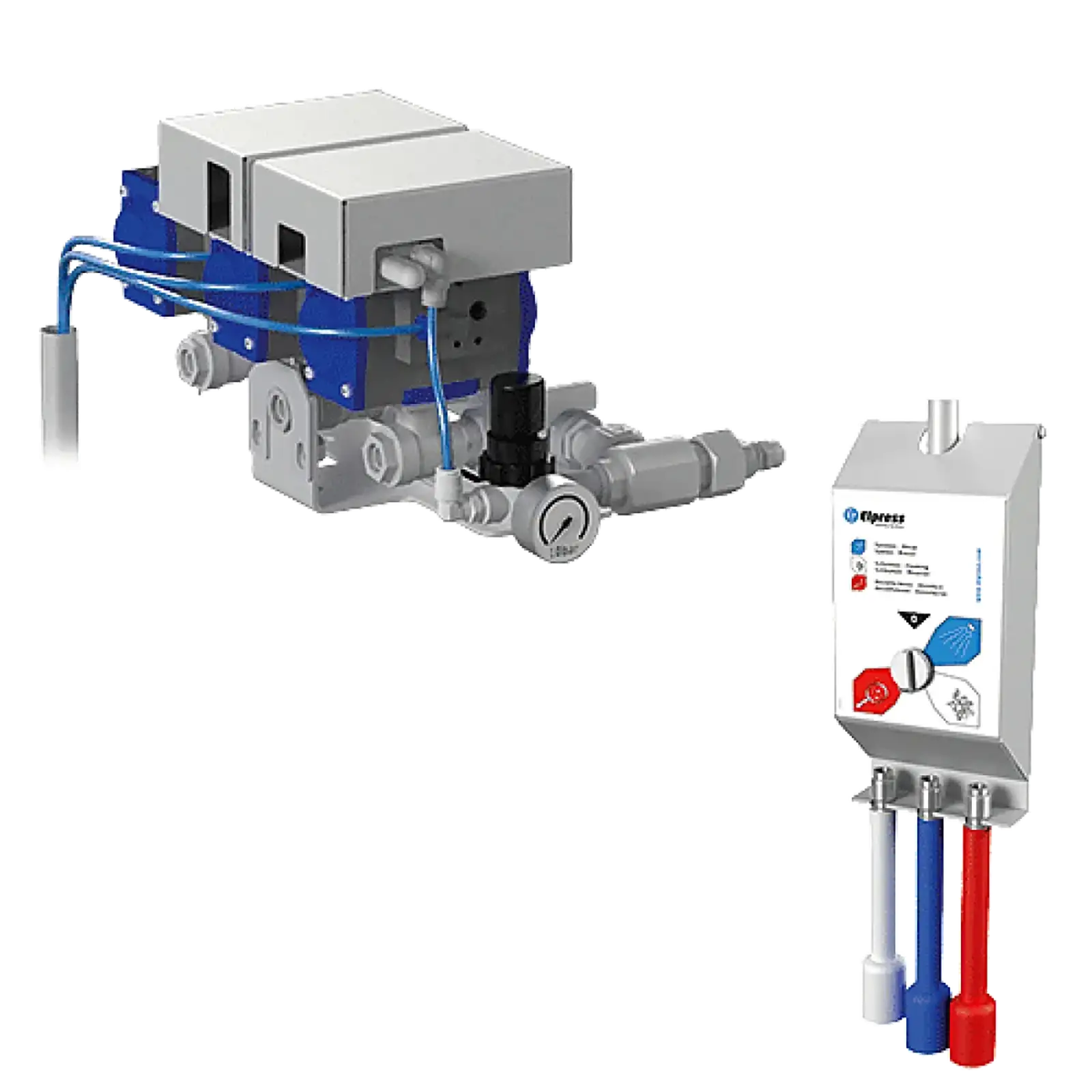

This system distributes chemicals from a single central source to various locations or devices using compressed air technology. Air pressure is used to apply the right amount of chemicals to just the right place.

After pressing the relevant selection button, the cleaning process can begin. The hygienically designed control panel allows users to easily choose the desired activity: rinsing, foaming or disinfecting. The satellite itself is located above the ceiling and is supplied by a centralised chemical supply.

Hygienic housing
Adjustable foam composition
No need to carry around separate jerrycans
Very simple operation

AC 35-B | RF Article nr. 83801030

Max people simultaneous – Foaming	1
Max. water temperature	70 °C
Maximum working pressure	40 bar
Pressure – Water	40 bar
Pressure – Rinsing	40 bar

AC 45-B | RFD Article nr. 83801040

Max people simultaneous – Foaming	1
Max people simultaneous – Disinfecting	1
Max. water temperature	70 °C
Maximum working pressure	40 bar
Pressure – Water	40 bar

HC 35-B | RF Article nr. 83801050

Max people simultaneous – Foaming	1
Max. water temperature	70 °C
Pressure – Water	40 bar
Pressure – Rinsing	40 bar
Pressure – Foaming	8 bar

HC 45-B | RFD Article nr. 83801060

Max people simultaneous – Foaming	1
Max people simultaneous – Disinfecting	1
Max. water temperature	70 °C
Pressure – Water	80 bar
Pressure – Rinsing	80 bar

Blocksat 2.0 | RF | 4 Bar Article nr. 83801245-4B

Max people simultaneous – Foaming	1
Max. water temperature	70 °C
Pressure – Water	4 bar
Pressure – Rinsing	4 bar
Pressure – Foaming	2 bar

Blocksat 2.0 | RF | 20 Bar Article nr. 83801245-20B

Max people simultaneous – Foaming	1
Max. water temperature	70 °C
Pressure – Water	20 bar
Pressure – Rinsing	20 bar
Pressure – Foaming	10 bar

rBlocksat 2.0 | RF | 40 Bar Article nr. 83801245-40B

Max people simultaneous – Foaming	1
Max. water temperature	70 °C
Pressure – Water	40 bar
Pressure – Rinsing	40 bar
Pressure – Foaming	10 bar

Blocksat 2.0 | RF | Centralised cleaning Article nr. 83801247

Max people simultaneous – Foaming	1
Max. water temperature	70 °C
Pressure – Water	40 bar
Pressure – Rinsing	40 bar
Pressure – Foaming	8 bar

Blocksat 2.0 | RFD | 4 Bar Article nr. 83801255-4B

Max people simultaneous – Foaming	1
Max people simultaneous – Disinfecting	1
Max. water temperature	70 °C
Pressure – Water	4 bar
Pressure – Rinsing	4 bar

Blocksat 2.0 | RFD | 20 Bar Article nr. 83801255-20B

Max people simultaneous – Foaming	1
Max people simultaneous – Disinfecting	1
Max. water temperature	70 °C
Pressure – Water	20 bar
Pressure – Rinsing	20 bar

Blocksat 2.0 | RFD | 40 Bar Article nr. 83801255-40B

Max people simultaneous – Foaming	1
Max people simultaneous – Disinfecting	1
Max. water temperature	70 °C
Pressure – Water	40 bar
Pressure – Rinsing	40 bar

Blocksat 2.0 | RFD | Centralised cleaning Article nr. 83801257

Max people simultaneous – Foaming	1
Max people simultaneous – Disinfecting	1
Max. water temperature	70 °C
Pressure – Water	40 bar
Pressure – Rinsing	40 bar
