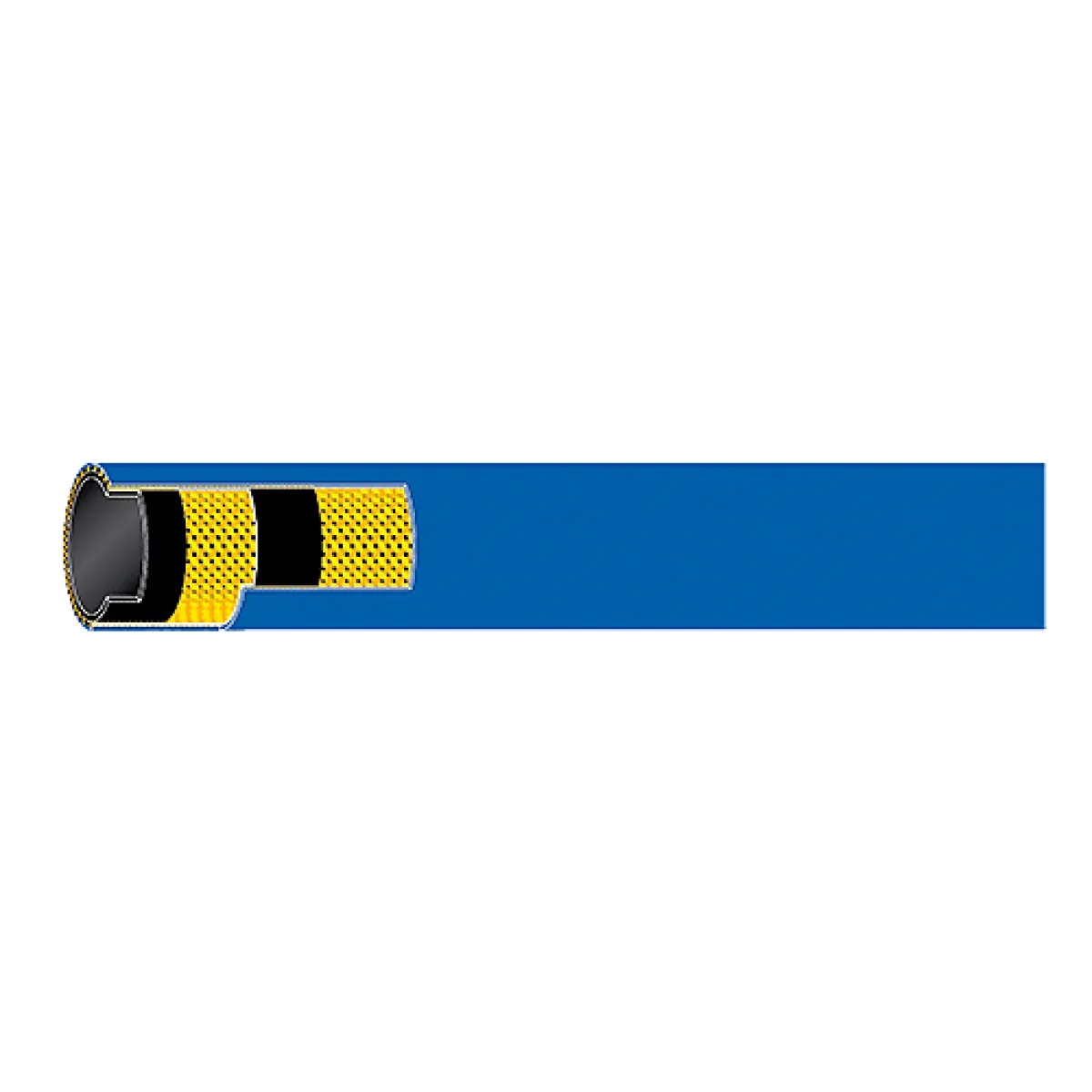

HP-Blue

High-quality cleaning hose. Applicable to the food industry, and to industrial use with heavy wear.

Read moreRequest information

HP-Blue

Benefits

  • Excellent flexibility
  • Woven steel inserts with pressure in accordance with EN 853 2SN
Request information

See images

HD-BLAUW

Our versions

  • HP-Blue 3/8"

    Inner wall: NBR/SBR, black, smooth
    Inset: 2 steel
    Outer wall: SBR/NBR blue, smooth
    Working pressure: 330 bar
    Temperature: max. 150°C

  • HP-Blue 1/2"

    Inner wall: NBR/SBR, black, smooth
    Inset: 2 steel
    Outer wall: SBR/NBR blue, smooth
    Working pressure: 330 bar
    Temperature: max. 150°C

Article number Inside dimensions / mm Outside dimensoins / mm Max. working pressure / bar Bursting pressure Length / m Connections
75926000 (3/8″) 9,5 17,4 400 1200  –
75926110 9,5 17,4 400 1200 10 1/2″ F x 1/2″ F
75926115 9,5 17,4 400 1200 15 1/2″ F x 1/2″ F
75926120 9,5 17,4 400 1200 20 1/2″ F x 1/2″ F
75926125 9,5 17,4 400 1200 25 1/2″ F x 1/2″ F
75926130 9,5 17,4 400 1200 30 1/2″ F x 1/2″ F
75926135 9,5 17,4 400 1200 35 1/2″ F x 1/2″ F
75926140 9,5 17,4 400 1200 40 1/2″ F x 1/2″ F
75928000 (1/2″) 12,7 400 1200
75928110 12,7 20,6 400 1200 10 1/2″ F x 1/2″ F
75928115 12,7 20,6 400 1200 15 1/2″ F x 1/2″ F
75928120 12,7 20,6 400 1200 20 1/2″ F x 1/2″ F
75928125 12,7 20,6 400 1200 25 1/2″ F x 1/2″ F
75928130 12,7 20,6 400 1200 30 1/2″ F x 1/2″ F
75928135 12,7 20,6 400 1200 35 1/2″ F x 1/2″ F
75928140 12,7 20,6 400 1200 40 1/2″ F x 1/2″ F
Request information
