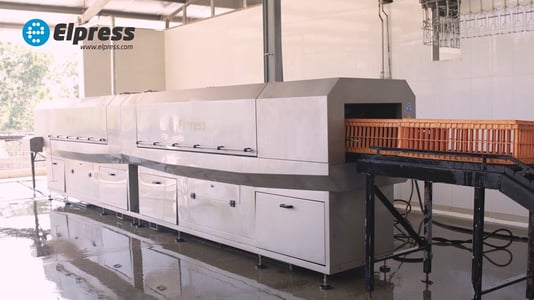

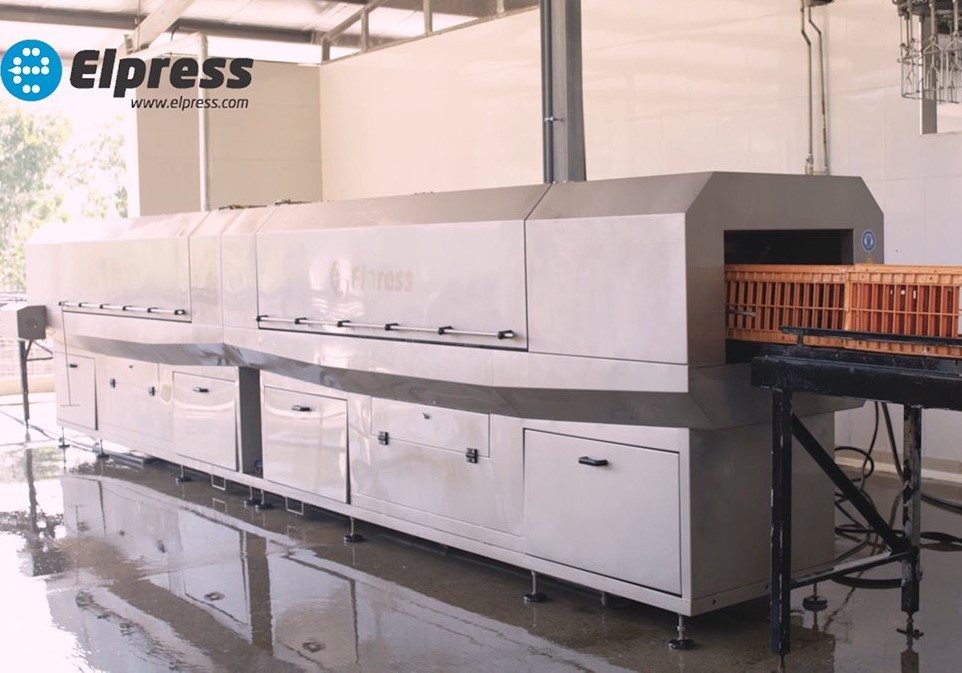

The ELB crate washers are made from rugged stainless steel plates and profiles. These line machines are specially designed for cleaning live bird crates. These are crates that are used for the transportation of poultry (e.g. chickens or chicks).

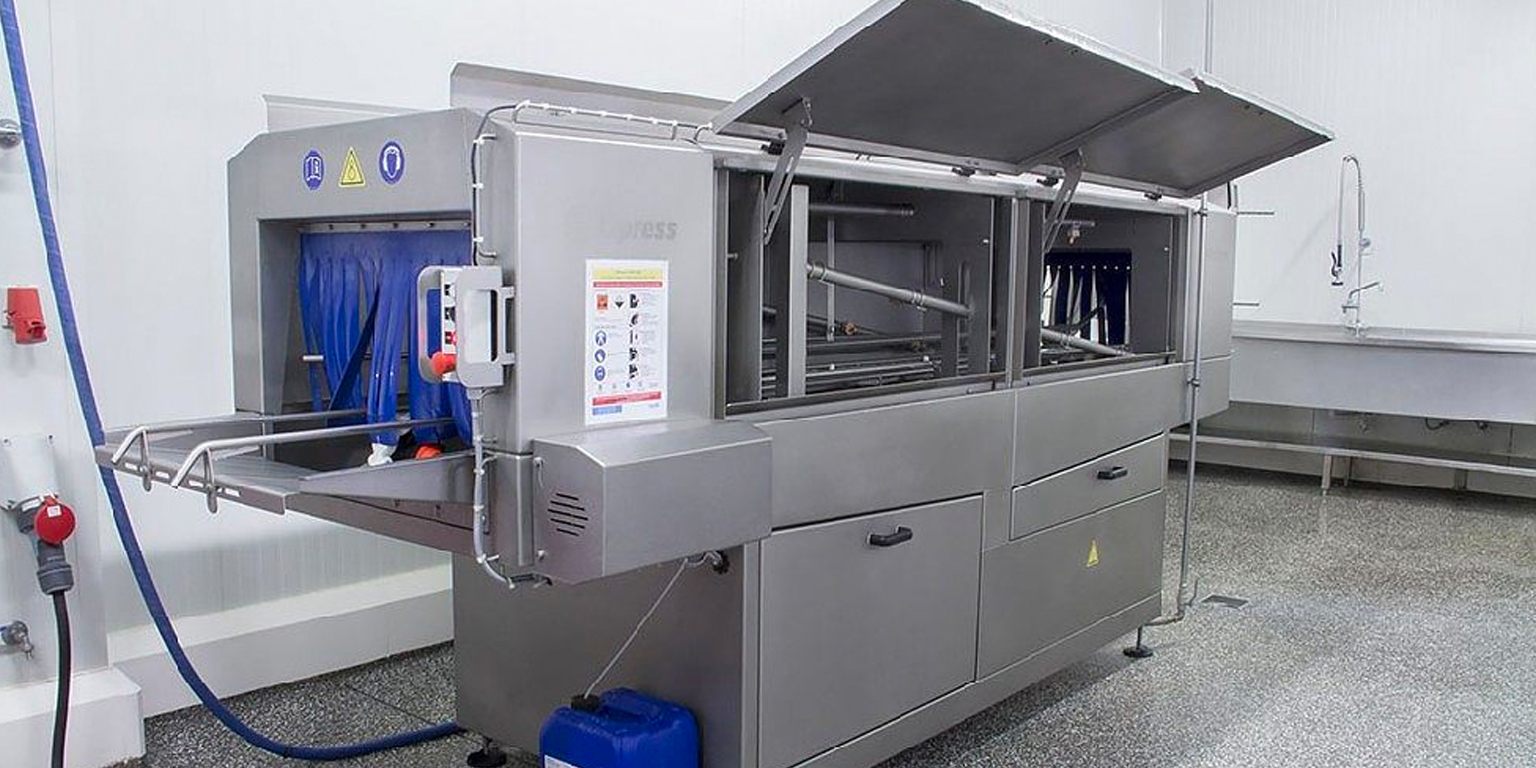

Request information Read moreOur ELB crate washers have a washing tunnel with hinged doors. If a door is opened during cleaning, the installation stops immediately. The crates are transported through the system by a plastic transport chain including frequency controller. The rinse arches are fitted with a large number of stainless steel nozzles. Each wash tank has dosing pumps and a hot water coil.
The worst of the dirt is cleaned off the crates in the pre-wash zone. The nozzles are supplied with water by a powerful, energy-efficient pump. The main wash tank is filled via its own filling connection, which is equipped with level sensors.
The remaining dirt is removed from the crates in main wash zone I (from ELB-V7500) and/or main wash zone II (only on ELB-12500 and ELB-V15000). The nozzles are supplied with water by a powerful, energy-efficient pump. The main wash tank is filled via its own filling connection, which is equipped with level sensors.
The crates are rinsed off with clean water in the rinse zone. The rinse arch is sensor-operated. If no crates are present, the water supply is shut off.
Advantages
Capacity: max. 330 crates per hour, based on a crate length of 950 mm and dwell time of 50 seconds.
Pre-wash zone and rinse zone

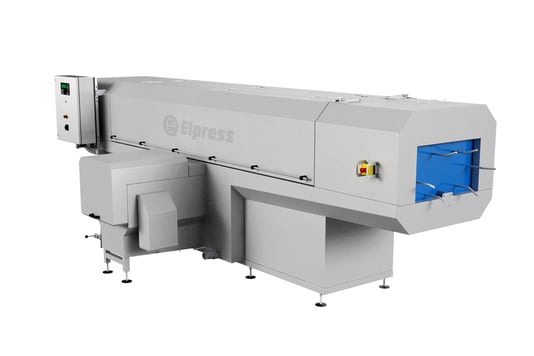

Article number: 83102805
Capacity: max. 500 crates per hour, based on a crate length of 950 mm and dwell time of 50 seconds.
Pre-wash zone, main wash zone and rinse zone
Article number: 83102815
Capacity: max. 660 crates per hour, based on a crate length of 950 mm and dwell time of 50 seconds.
Pre-wash zone, main wash zone and rinse zone
Article number: 83102825
Capacity: max. 820 crates per hour, based on a crate length of 950 mm and dwell time of 50 seconds.
Pre-wash zone, main wash zone l, main wash zone ll and rinse zone
Article number: 83102835
Capacity: max. 1000 crates per hour, based on a crate length of 950 mm and dwell time of 50 seconds.
Pre-wash zone, main wash zone l, main wash zone ll and rinse zone
Article number: 83102845
Do you want a no-obligation discussion about practical provisions that you can implement within your company? Then schedule an appointment with me.
